Description

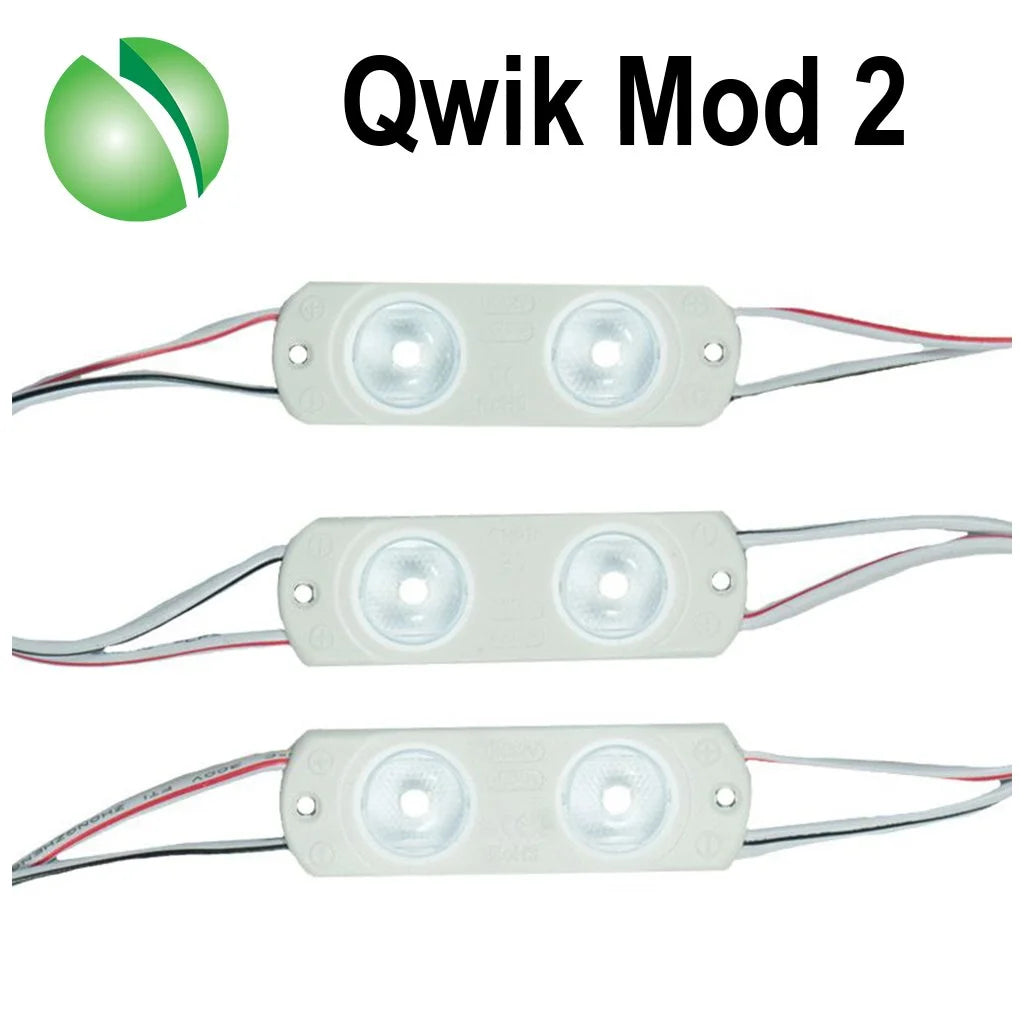

Principal LED’s Qwik Mod™ 2 Series is built for efficient, wide-coverage lighting in channel letters and cabinet signage. Featuring Diamondback Optic Lens Technology, each module delivers a 170° ultra-wide batwing pattern that improves light diffusion while reducing the number of modules needed per foot. The Qwik Release™ tab allows for fast installation using peel-and-stick or mechanical mounting methods. Each bag includes 76 modules (44.7 feet), with a built-in aluminum heatsink for long-term performance. UL-listed and IP68 rated, these modules are ready for both indoor and outdoor installs.
Key Features:
-
Ultra-wide 170° Diamondback batwing lens
-
High-efficacy design: up to 118 lm/W (White 7100K)
-
Red: 76 modules per bag (approx. 44.7 ft)
-
Integrated aluminum heatsink for thermal stability
-
Snap & Peel Qwik Release™ backing for easy install
-
IP68 rated for all-weather durability
-
Operating temperature: -30°C to +60°C
-
24V DC operation – compatible with 60W or 100W power supplies
-
10-year product warranty / 5-year labor coverage
-
Ideal for 3–6" deep sign cans (spacing guide provided)
