Description

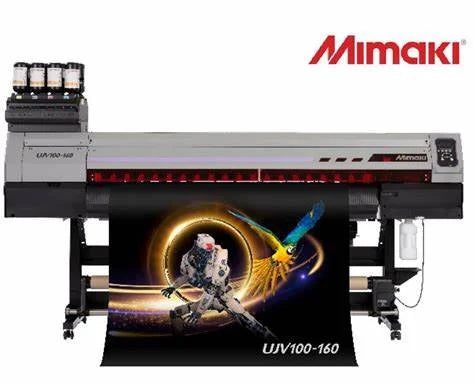

The Mimaki UJV100-160Plus is a 60" UV-LED roll-to-roll printer built for high-efficiency, sustainable graphics production. Featuring two staggered on-demand piezo print heads, it delivers high image quality, faster speeds, and reduced power consumption, using less than half the electricity of traditional eco-solvent or latex printers. Designed to print on flexible media including vinyl banners, PET films, adhesive vinyl, and coated papers, it excels in retail, backlit, and wrap graphics production. Instant curing, no drying time, and low VOC output allow shops to increase throughput while maintaining a safe and clean work environment.
Key Features:
-
Automatic Dot Adjustment System (DAS) for self-correcting dot position and feeding
-
High-speed printing: Up to 146.3 sqft/hr
-
Mimaki Advanced Pass System 4 (MAPS4) for smoother gradients
-
Instant curing UV prints: No dry time or lamination delays
-
Multi-layer & pull-back function: Supports backlit and layered applications
-
Energy efficient: Max 0.5kW power consumption
-
Ink Type: LUS-170 (1L bottles) – CMYK + White
-
Max Media Weight: 99.2 lbs
-
Interfaces: Ethernet & USB 2.0
-
Certifications: UL, RoHS, CE, FCC Class A
-
Size (W x D x H): 109.3" × 27.6" × 58.1"
-
Weight: 368.2 lbs
