Description

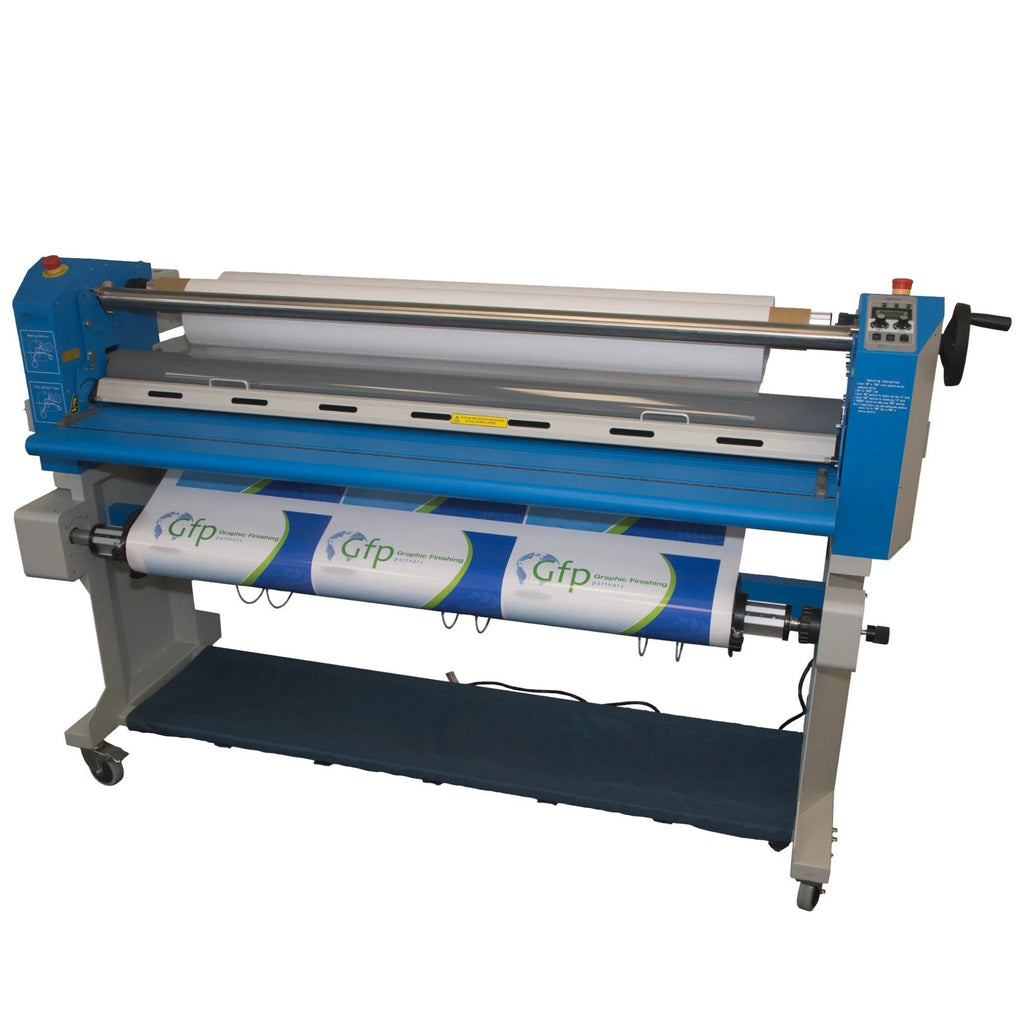

The Gfp 563TH-4RS is a 63" production-grade top heat laminator designed to maximize efficiency in high-volume environments. Built for overlamination, mounting, and board pre-coating, this unit combines rugged performance with user-friendly features to reduce setup time and boost throughput. Key highlights include swing-out Quick-Grip supply shafts, drop-in rewind shafts, a metal alloy heater for reduced breakage, and a motorized rear rewind with integrated rotary slitters for roll-to-roll workflow. With enhanced safety from the photoelectric eye and a durable stand with casters, the 563TH-4RS is a reliable choice for graphics professionals focused on speed and ease of use.
Key Features:
-
63" laminating width with 4.5" diameter rollers
-
Swing-out Quick-Grip supply shafts and drop-in rewind shafts
-
Rear motorized rewind system with rotary slitters included
-
Photoelectric eye for added operator safety
-
Metal alloy heater reduces risk of roller breakage
-
Roller gap measurement scale and handwheel pressure adjustment
-
Max roll capacity: 8" OD (top) / 16" OD (bottom)
-
Max temperature: 140°F | Speed: 0–20 ft/min
-
Foot pedal and caster stand included
-
Applications: signs, banners, floor graphics, vehicle wraps, and more
-
Power: 110v, 1320W, cTUVus safety certified
-
Dimensions: 87" x 26.5" x 52.5" | Net weight: 491 lbs
